Himmel Aluminium A Series 132 Partition Suite

Himmel Aluminium A Series 132 Partition Suite

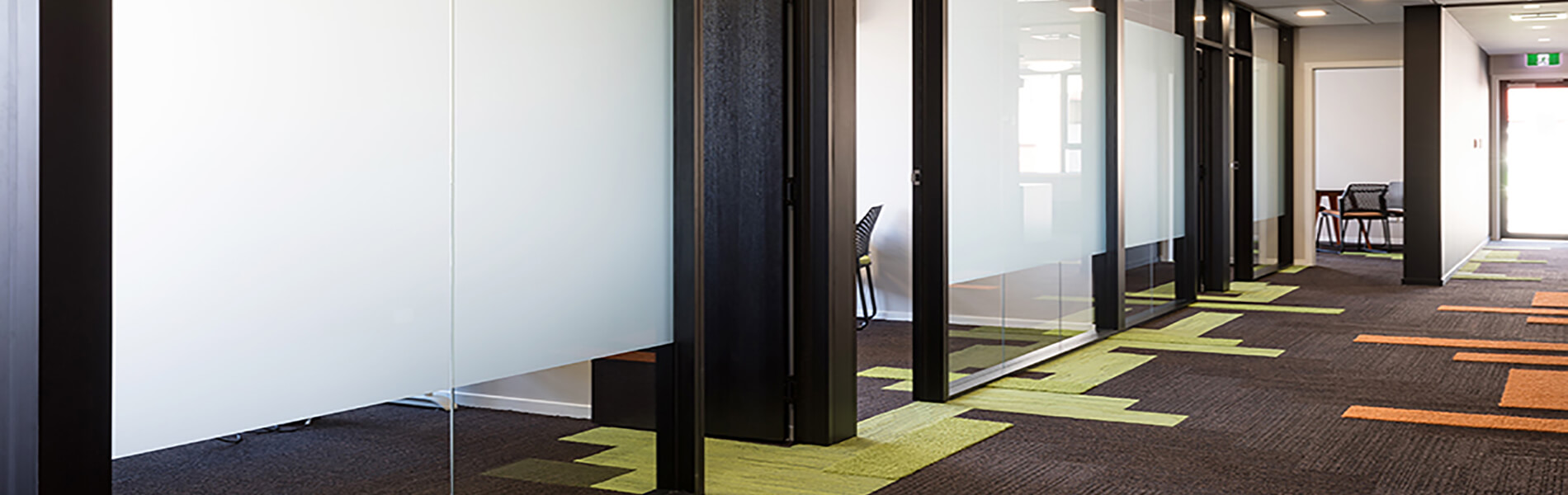

The Himmel Aluminium Series A Series 132 provides a central line glazing with numerous configurations and design options, offering a complete partition system for plasterboard and glazing.

Product Properties

Himmel Aluminium A Series 132 Partition Suite has the following features:

  • Standard profile size of 132mm x 25mm, 132mm x 35mm, 132mm x 50mm
  • Standard wall size based around 92mm steel stud with one layer of 13mm Gyprock plaster board on each side
  • Can accommodate glass thicknesses between 6mm and 13mm
  • Door thicknesses between 35mm and 45mm can be used
  • Shadowline details optional

CAD details are either individual components or fully assembled details for convenient transfer to specifiers drawings.

The file formats available for download are .DWG, .DXF, .PDF and Autodesk Revit .RVT

Technical advise is available from our experienced team please email us on himmelcustomerservice@csr.com.au.


If our standard CAD detail is not showing the design you are looking for, please email our team to help you achieve your required design.

Designed by Himmel Interior Systems in Australia, Himmel Aluminium partitioning suites incorporate a host of proven innovative concepts to assist both design and installation.

Aluminium is a proven construction material for buildings, vehicles, appliances, and products, both as a framing and cladding material. In the building industry, it is by far the most common material used for window and door joinery, curtain walls and shop fronts. Its selection is based on many criteria – one being its ease of fabrication to provide visual appeal and easy maintenance.

Today’s design trends along with the new world we live in brings the need to evolve existing larger open plan spaces efficiently into smaller offices allowing individuals or teams to have their own space to feel safe in.

Our innovative range of systems support, inspire and enable people to collaborate, share knowledge, learn together, build, and produce innovation and success.
